Quick Coupling

2012-02-06 13:39:21 | 阅读（443）



Origin : CHINA
Brand:CATAMARON
Product Description :
1.Material:Brass,Stainless Steel

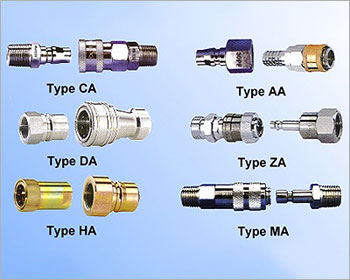

2.Type:
  (1) Pneumatic Quick Couplings
      1.Type CA: Standard Flow/ Standard Pressure
      2.Type AA: Large Flow/ Standard Pressure
      3.Type MA: Large Flow/ Standard Pressure
      4.Type 200T/200L/200S
  (2)Hydraulic Pressure Quick Couplings
      1.Type DA: Large Flow/ High Pressure
      2.Type HA: Large Flow/ High Pressure
  (3)Tooling Development Quick Couplings
      1.Type MDA/MDB
      2.Type TSP-HP
  (4)Car-Washing Machine Quick Couplings
      1.Type TS
  (5)Flame-Proof Quick Couplings
      1.Type ZA

Primary Competitive Advantages:
. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Small Order Accepted
. ODM Accepted
. OEM Accepted

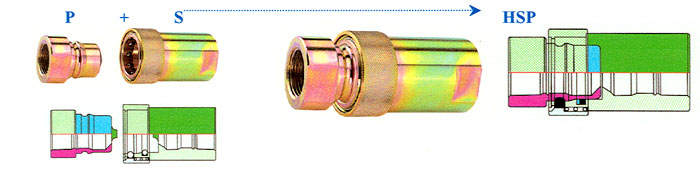

Socket(S)
Manuf.
No.
 DIMENSIONS (mm)
Ls Dø Hs
(O.D×SW×Diaronal)		 A T
2SF
 49 27.5 23.9ø×2×19 12 1/4"
3SF
 60 33 28.6ø×2×29 13 3/8"
4SF
 72 43 38.5ø×2×35 16 1/2"
6SF
 72 43 38.5ø×2×35 18 3/4"
8SF
 93 58 52.2ø×2×46 20 1"
10SF
 138 87 64ø×2×58 24 1-1/4"
12SF
 138 87 64ø×2×58 24 1-1/2"
16SF
 198 123 90ø×2×80 32 2"

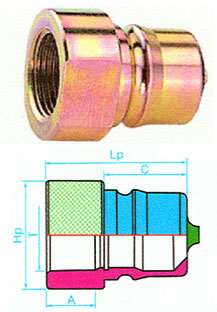

PLUG(P)
Manuf.
No.
 DIMENSIONS (mm)
Lp C Hp
(O.D×SW×Diaronal)		 A T
2PF
 32 17.5 22ø×Hex.×19 12 1/4"
3PF
 38 22.5 25ø×Hex.×22 13 3/8"
4PF
 44 27.5 32ø×Hex.×29 16 1/2"
6PF
 50 27.5 35ø×Hex×32 18 3/4"
8PF
 61 36 47ø×2×41 20 1"
10PF
 80 58 64ø×2×58 24 1-1/4"
12PF
 80 58 64ø×2×58 24 1-1/2"
16PF
 115 83 100ø×2×90 32 2"




??
